Product Introduction:

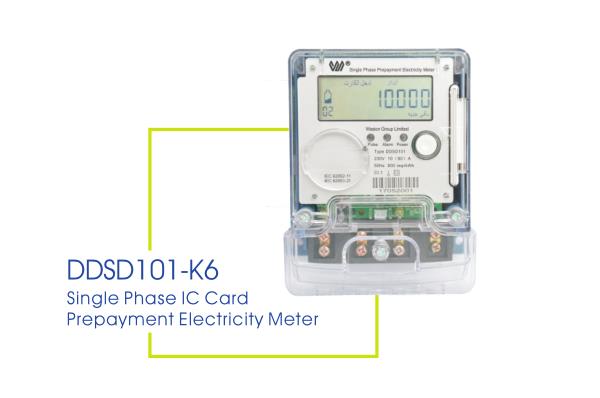

    DDSD101-K6 is a single phase two wires class 1 for active energy prepayment static electricity meter that supports 32k bytes IC card, meet the latest STS standards and requirements of electricity utilities.

Main features:

    Class 1 for active energy. Reference voltage 230V. Current range 10(80)A. Both phase and neutral measurement. Bi-directional measurement. Internal relay with two poles. Step tariff or TOU tariff. Charging and reading meter data via 32KB IC card which complies with IEC7816. IEC1107 optical port which uses IEC62056-21 protocol. VTC port for reading meter data when power-off. Protection degree IP54. The meter supports replaceable battery and tamper detect functions such as cover open and current unbalance.
